Forrestfield Airport Link

Overview

Our involvement in the Forrestfield Airport Link was centered on the Design, Supply, and Installation of Fire Protection to the SGI Lining. In compliance with the warranty required by PTA, we innovatively utilised Stainless Steel mesh baskets and stainless steel ties, employing Rio guns for installation. Our focus extended beyond mere solutions to the intricate details that elevate a system to excellence.

Background

Unique Fire Protection at Forrestfield Airport Link.

In 2018, a leak during the installation of the first tunnel cross passage, Cross Passage Dundas, led to rapid water and silt ingress into Tunnel One, causing ground loss and a sinkhole formation. The resulting groundwater pressure and lack of support caused permanent distortion and damage to a 26-meter section of Tunnel One. To address this, a cast iron steel ring (SGI lining) was installed and, recognizing the critical nature of the project, passive fire protection was deemed necessary for the SGI lining.

The SGI lining played a pivotal role in ensuring tunnel integrity, and to enhance its fire protection capabilities, Cafco Fendolite was meticulously installed. PFM collaborated closely with Salini in designing stainless steel mesh baskets, perfectly contouring the surface of the SGI lining. This approach aimed at achieving not just functionality but a seamless integration of safety measures.

2024/01/Projects_passivefire_FAL_917_PC.jpg

Our Approach Our Approach Our Approach Our Approach Our Approach Our Approach Our Approach Our Approach Our Approach Our Approach Our Approach Our Approach Our Approach Our Approach Our Approach Our Approach

Approach

Details That Ignite Fire Protection

01

Innovative Stainless Steel Mesh Basket Design

Pioneered the design of stainless steel mesh baskets, ensuring a meticulous fit to the contours of the SGI lining. Our approach was not just about protection but the fusion of innovation and functionality.

02

Sprayed Cementitious Fire Protection

Applied Cafco Fendolite with precision, enhancing the fire protection capabilities of the SGI lining. This step was crucial in fortifying the tunnel's integrity and ensuring compliance with safety standards.

03

Attention to Detail in Installation

Executed the installation with Rio guns, utilising stainless steel ties and custom made mesh baskets. Our focus on attention to detail set the stage for a system that goes beyond the ordinary, addressing every intricacy for a comprehensive fire protection solution.

04

Collaborative Design Excellence

Collaborated closely with the client in the design phase, ensuring the seamless integration of stainless steel mesh baskets into the SGI lining. This collaborative approach emphasised the importance of precision and excellence in design.

2024/01/Projects_passivefire_FAL_onsite2_PC.jpg

CAFCO FENDOLITE Protection

2024/01/Projects_passivefire_FAL_onsite3_PC.jpg

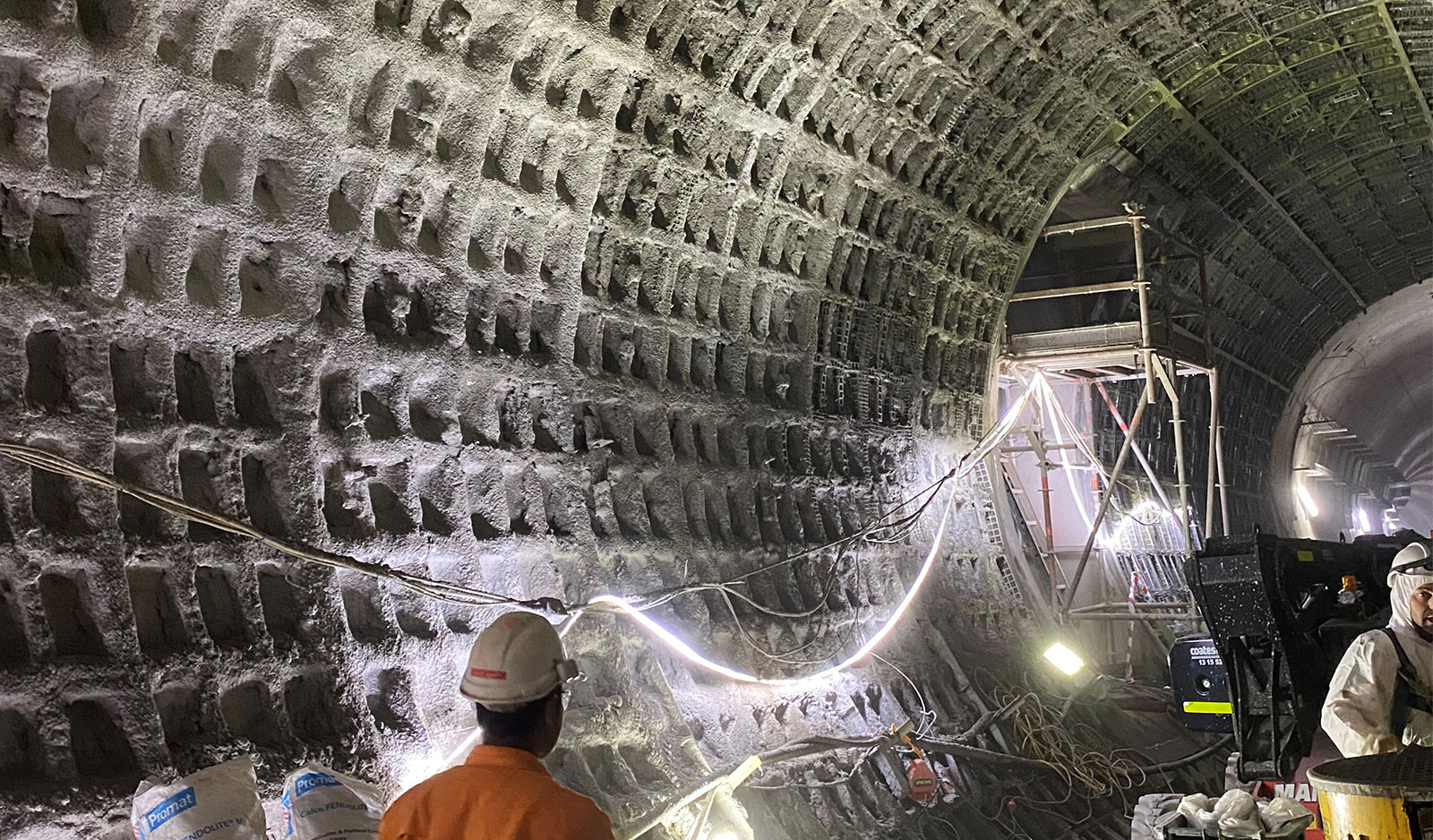

On Site Progress

2024/01/Projects_passivefire_FAL_onsite_PC.jpg

Custom Stainless Steel Reinforcement

CAFCO FENDOLITE Protection

On Site Progress

Custom Stainless Steel Reinforcement

The team at PFM mobilised to site quickly, presented us with a unique option to reinforce the fire protection spray. The project was completed on time and on budget

– Alvin, Salini impregilo

Outcome

Stainless Steel Mesh Integration

The outcome of our efforts at Forrestfield Airport Link reflects not just a fire protection solution but a meticulously crafted system. From innovative stainless steel mesh baskets to the enhancement of SGI lining with CAFCO FENDOLITE, the result is a testament to our commitment to excellence and attention to detail. Stay tuned for further updates as we continue to pioneer advancements in fire protection technology.
